The Complete Site Plan Guide

If you’ve been asked for a site plan and don’t know what that means, or if you’ve got one but aren’t sure it’s correct, this is the site plan guide that answers everything.

I’m Engineer Wasim of Site Plans Online USA.

What Is a Site Plan?

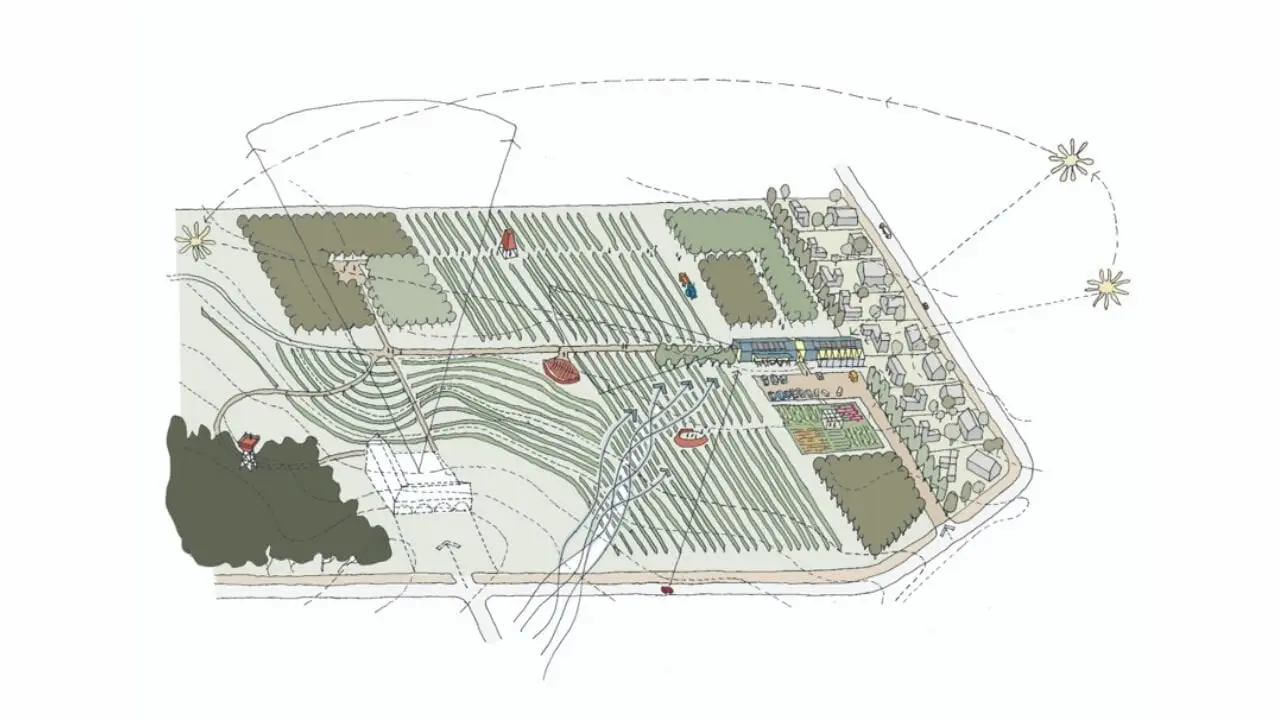

A site plan is a scaled, top-view drawing of your property showing where things are and where your proposed project will go.

Think of it as a simplified aerial view drawn with measured proportions, labeled with dimensions, and formatted with the specific information a building department uses to evaluate your permit application.

It is not a floor plan (interior layout). It is not a blueprint (construction details). It is not a survey (legal boundary certification). It is a property drawing for permit submission.

When Do You Need a Site Plan?

You need a site plan for a building permit any time work affects the exterior footprint or layout of your property:

Pool or spa permits → Pool Permit Site Plan Guide
Fence permits → Fence Permit Site Plan Guide
Shed or accessory structure → Shed Permit Site Plan Guide
Deck or patio permit
Home addition → site plan required
Garage addition → Garage Addition Site Plan Guide
ADU or guest house → ADU Site Plan Guide
Driveway expansion
Commercial permits of any type → Commercial Site Plans

Use our Permit Requirements Checker to confirm for your project.

Types of Site Plans

Residential site plan — for homeowners and residential contractors. Non-certified. Accepted by most building departments for residential permits without requiring a PE stamp.

Commercial site plan — more detail required: parking, ADA, fire access, drainage. PE stamp required in most US jurisdictions.

PE-stamped site plan — reviewed, signed, and sealed by a licensed Professional Engineer. PE Stamp services.

ADU site plan — includes parking, utility connections, and lot coverage. ADU Plans.

Non-certified site plan — prepared by a drafter without PE certification. Accepted for most residential permits. Learn more.

What Every Site Plan Must Include

The nine universal elements required by every building department in the US:

Property boundaries with dimensions
Legal description and parcel ID
Property address and street names
North arrow
Scale — stated and shown as a graphic bar
All existing structures with dimensions
Proposed project labeled and dimensioned
All four setback dimensions labeled in feet
Complete title block

Full checklist: Site Plan Drawing Requirements

Why Do Site Plans Get Rejected?

The five most common rejection reasons:

Missing setback dimensions
Not drawn to scale
Existing structures not shown
Impervious surface not calculated
North arrow missing

Full breakdown: Why Site Plans Get Rejected

If your plan was already rejected: Permit Rejection Analyzer

How Much Does a Site Plan Cost?

Pricing depends on project type. Use our Cost Calculator for an instant estimate. See Site Plan Packages for what’s included at each level.

How to Get a Site Plan

Submit your property address and project type to Site Plans Online USA. We research your jurisdiction, prepare the drawing, and deliver your permit-ready PDF within 12–24 hours for most residential projects. Free revisions if the building department requests changes.

For Florida permits: Site Plans FL — Florida’s permit site plan specialist.
