If a building department asked you for a “site plan” and you’re not sure what that means, you’re not alone. It’s one of the most commonly misunderstood terms in the permit application process.
I’m Engineer Wasim of Site Plans Online USA. Here’s the plain-English answer.
The Simple Definition

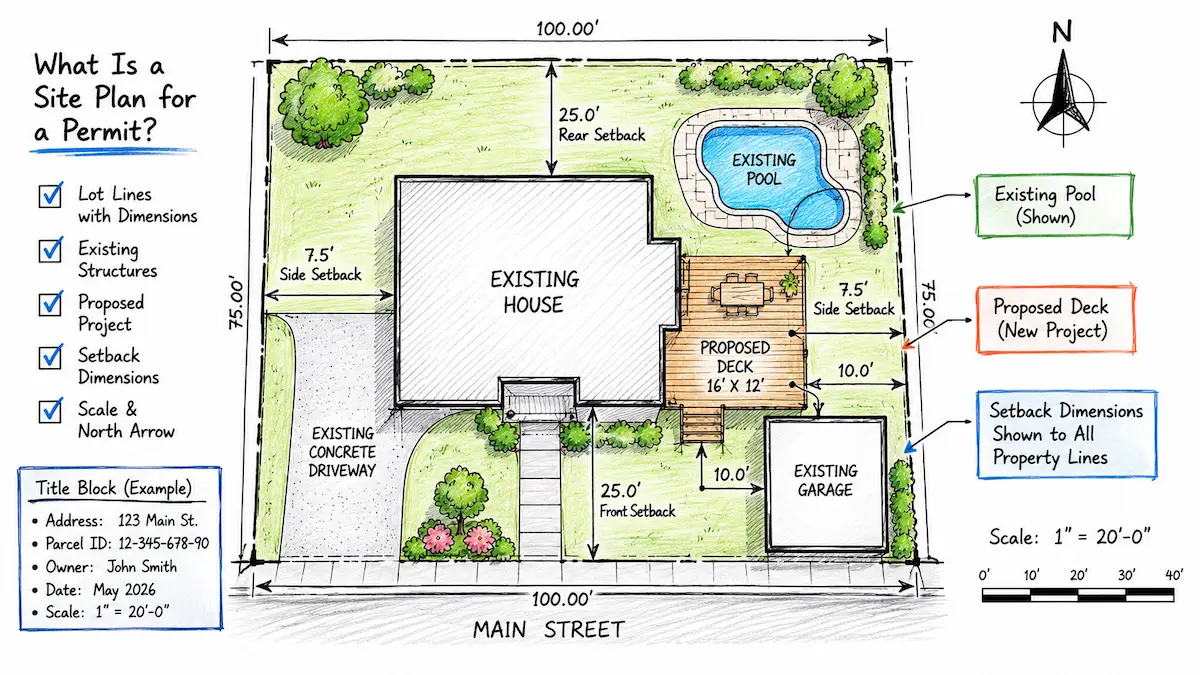

A site plan for a permit is a scaled, top-view drawing of your property that shows where things are on the land and where your proposed project will go.
Think of it as a simplified aerial photograph of your property — but drawn to a consistent scale, labeled with measurements, and formatted with the specific information a building department uses to decide whether to approve your permit.
It answers one core question: does this project comply with local zoning rules — specifically, is it far enough from the property lines (setbacks), and does it stay within the lot coverage limit?
What It Is NOT
It’s not a floor plan. A floor plan shows the interior layout of a building, where the rooms, walls, doors, and windows are inside the structure. A site plan shows the property from above, where the building sits on the lot.
It’s not a blueprint. Blueprints (construction drawings) show how to build the structure — framing details, electrical layouts, plumbing diagrams. A site plan doesn’t show construction details. It shows location.
It’s not a survey. A property survey is a legal document prepared by a licensed land surveyor that certifies the exact location of your property boundaries. A site plan uses that boundary information to show your project, but a survey and a site plan are different documents.
Site Plan vs Survey — Full Explanation
Why Building Departments Require a Site Plan
Before approving a building permit, the reviewer must confirm that the proposed project:
- Respects minimum setback distances from property lines — every zoning district specifies how close you can build to each property line
- Doesn’t push total hard surface coverage over the zoning maximum
- Doesn’t encroach on recorded easements
- Accounts for all existing conditions on the property
Without a site plan, the reviewer has no way to verify any of these things. The permit can’t be approved.
What a Site Plan for a Permit Shows
A properly prepared permit site plan includes:
- Property boundaries — lot lines with exact dimensions in feet
- Parcel ID and legal description — matches county records
- Existing structures — every building, driveway, patio, fence, and pool on the lot
- Proposed project — where the new pool, fence, shed, deck, or addition will go
- Setback dimensions — exact distances from the proposed structure to each property line
- Scale — so reviewers can verify measurements
- North arrow — so reviewers know which side is the front
- Impervious surface calculation — total hard surface coverage as a percentage of lot area
- Title block — property address, owner name, preparer, date
Who Needs a Site Plan for a Permit
Almost anyone applying for a building permit for exterior work. Common examples:
- Pool or spa — one of the most detailed site plan requirements of any residential permit
- Fence — show where it goes and how high
- Shed or accessory structure — show placement and setbacks
- Deck or patio — show dimensions, height, attachment
- Home addition — show where it extends the house footprint
- ADU or guest house — show lot coverage, parking, utilities
- Garage — attached or detached
- Driveway — impervious surface impact
- Commercial permits — any type
Full list: Get a Site Plan for Permit
What Makes a Site Plan “Permit-Ready”
Not every site plan is permit-ready. A permit-ready site plan specifically:
- Is drawn to scale (not “not to scale”)
- Includes a graphic scale bar in addition to the written scale
- Shows all existing structures — not just the proposed new project
- Labels all four setback dimensions explicitly in feet
- Includes an impervious surface calculation
- Has a complete title block
- Is formatted for the building department’s specific portal requirements
A plan missing any of these elements will be returned with a correction notice.
For what causes rejections: Why Site Plans Get Rejected
Is a Site Plan the Same as a Plot Plan?
Yes — in almost all US building permit contexts, a site plan and a plot plan are the same document. Different building departments use different terminology. Some say “submit a site plan.” Others say “provide a plot plan.” Both mean the same thing: a scaled overhead property drawing showing your project location.
