Site Plan
for a Permit —
Done Right, Fast
Your city asked for a site plan before approving your building permit. You need it fast, formatted correctly, and accurate enough to pass first-time review. That's exactly what we prepare.
Residential, Commercial & PE-Stamped Plans
Every plan is drawn to scale, researched for your county, and formatted for your building department portal — starting from just $79.
Residential Site Plans
Pool, fence, deck, shed, addition, ADU, garage — any residential project that needs a permit. GIS-verified, county-formatted, delivered in 12–24 hours.
- Pool, Fence, Deck, Shed
- Home Addition & ADU
- 12–24 hr delivery
- Starting from $79
Commercial Site Plans
Full commercial permit packages including parking layout, ADA spaces, fire lanes, drainage notes, and PE stamp for jurisdictions that require engineer sign-off.
- Parking + ADA Compliance
- Fire Lane & Drainage Notes
- PE Stamp Available
- 24–48 hr turnaround
PE-Stamped Plans
Some jurisdictions — especially commercial, ADU, and structural projects — require a Professional Engineer's stamp. We provide PE-stamped site plans for any state.
- Licensed PE in Your State
- ADU, Commercial, Structural
- Digitally Signed & Sealed
- All 50 States

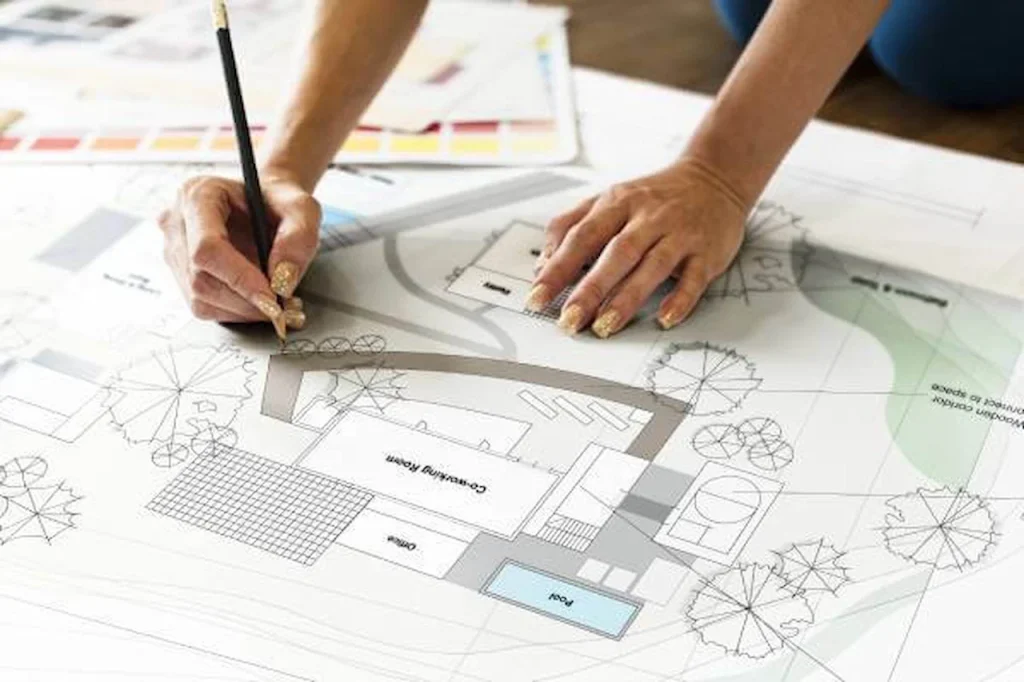

What Is a Site Plan
for a Permit?
A site plan for a permit is a scaled, top-view drawing of your property. The building department uses it to confirm your project complies with local zoning rules — setbacks and lot coverage. Without it, there's nothing to review.
- Property boundaries and lot dimensions
- All existing structures — house, garage, shed, pool, driveway
- Your proposed project — exact location and dimensions
- All four setback distances — front, rear, left, right
- Project-specific elements required by your building department
What Every Permit Site Plan Must Include
Required by every US building department without exception. Missing even one element causes a rejection and delays your permit.
Property Boundaries
All lot lines measured in feet with dimensions labeled
Parcel ID / APN
County property identifier — must match records exactly
Address + Legal Description
From county appraiser records, adjacent street names
North Arrow + Scale
Written scale AND graphic scale bar — both required
All Existing Structures
Every structure on the lot, dimensioned — GIS cross-checked
Proposed Project
Labeled "PROPOSED," dimensioned, all four setbacks shown
Title Block
Address, APN, owner name, preparer, date, scale
Impervious Surface Calc
Required for pools, decks, driveways, and most additions
Common Projects That Need a Site Plan
Every order includes GIS-verified data, county-specific setback research, and correct formatting for your building department portal.
| Project Type | Turnaround | Complexity | Action |
|---|---|---|---|
| Pool or Spa | 12–24 hrs | Medium | Order → |
| Fence or Wall | 12 hrs | Simple | Order → |
| Shed or Accessory Structure | 12 hrs | Simple | Order → |
| Deck or Patio | 12–24 hrs | Simple | Order → |
| Home Addition | 24 hrs | Medium | Order → |
| Garage — Attached or Detached | 24 hrs | Medium | Order → |
| ADU / Guest House | 24–48 hrs | Complex | Order → |
| Driveway Expansion | 12 hrs | Simple | Order → |
| Commercial Permits | 24–48 hrs | Complex | Order → |
| New Home Construction | 48 hrs | Complex | Order → |
I'm Engineer Wasim,
Founder of Site Plans Online USA
My team has prepared over 10,000 permit-ready site plans for homeowners, contractors, pool companies, and developers across all 50 states.
We research the specific requirements of your city or county for every order — GIS parcel data, zoning setbacks, flood zones, special overlays, and the exact formatting your portal requires. If your plan is returned, we update it within 12 hours at no extra charge.
From Order to Permit-Ready PDF
Six steps. You send us your address and project type — we handle the rest.
Submit Your Details
Send your property address, project type, and any permit comments from your building department.
We Research Your Property
GIS parcel data, lot dimensions, zoning setbacks, flood zones, and your county's exact submission format.
We Draft Your Site Plan
Drawn to scale, formatted for your portal, with all required elements for your project type.
You Review
You receive the plan, review it, and request any changes — typically turned around in a few hours.
You Submit
Receive your permit-ready PDF, submit it to your building department, and move forward.
Free Revisions if Needed
If the building department requests corrections, forward the notice. Updated within 12 hours, no charge.
5 Reasons Plans Get Rejected
And exactly how we prevent each one on every single plan we prepare.
Missing Setback Dimensions
The distance to each property line must be explicitly labeled. Missing even one triggers a correction. We label all four on every plan.
Not Drawn to Scale
"Not to scale" plans are auto-rejected. We draw every plan to the correct scale with both written and graphic scale bars.
Existing Structures Missing
Reviewers cross-check against satellite imagery. Every structure must appear. We use GIS data to verify before drafting.
No Impervious Surface Calc
Required for pools, decks, driveways, and additions. We calculate and clearly show the math on every applicable plan.
Wrong Portal Format
LADBS, San Diego DSD, Orange County FastTrack, Miami-Dade ePlan — each has specific requirements. We know them all.
Transparent Pricing, No Surprises
Every plan includes GIS-verified data, county-specific research, correct formatting, and free revisions. No hidden fees.
Site Plans Starting From
Simple residential projects (fence, shed, driveway) start at $79. Pool permits and ADUs are mid-range. Commercial and PE-stamped plans are priced higher. Get a free quote in minutes — no commitment.
We Serve All 50 States
We research the specific requirements of your city or county for every single order. Deep expertise in every US jurisdiction.
⭐ Florida — Deep Expertise
All 67 county databases, HVHZ zones, FEMA flood zones, and F.S. 515.29 pool barrier compliance. Florida Site Plans →
⭐ California — Full Coverage
ADU law (AB 2221), Coastal Zone, VHFHSZ fire zones, LADBS, San Diego DSD, all major CA markets. California Guide →
📋 Every County Researched
We look up your specific zoning setbacks, overlay districts, and portal formatting requirements for every single order — no templates.
Frequently Asked Questions
Everything you need to know before you order.
Learn From Our Expert Guides
Deep-dive guides on every permit type, jurisdiction, and site plan requirement — written by our engineering team.
Ready to Get Your
Permit Site Plan?
Send us your address and project type. We handle the GIS research, setback calculations, correct formatting — and free revisions until your permit is approved.
