378 SF Covered Breezeway Structural and Roof Plans in New Smyrna Beach, Florida

Location: New Smyrna Beach, Florida · Project type: Residential outdoor addition

Project overview

Site Plans Online USA developed permit-focused documentation for this residential project in New Smyrna Beach, Florida. This case study discusses the design constraints, site conditions and construction drawings prepared from actual project records.

The project challenge

Coordinating a 42 × 9-foot covered breezeway between an existing metal building and casita, including building offsets, floor elevations, roof slope, masonry supports, structural framing and weatherproofed junctions.

How the drawings addressed the project

Existing site and proposed layout

A 378 SF covered passage was drawn in relation to the existing buildings and site information.

Structural design coordination

Foundation drawings documented a monolithic reinforced-concrete slab-on-grade and thickened supporting footing details.

Roof and weather protection

The structural arrangement included an 8-inch reinforced CMU rear wall and 16 × 16-inch masonry support columns.

Connections and load path

Roof documentation showed a 3:12 metal-roof system with 2×6 rafters at 16 inches on center, sheathing, underlayment and connector details.

Permit-review documentation

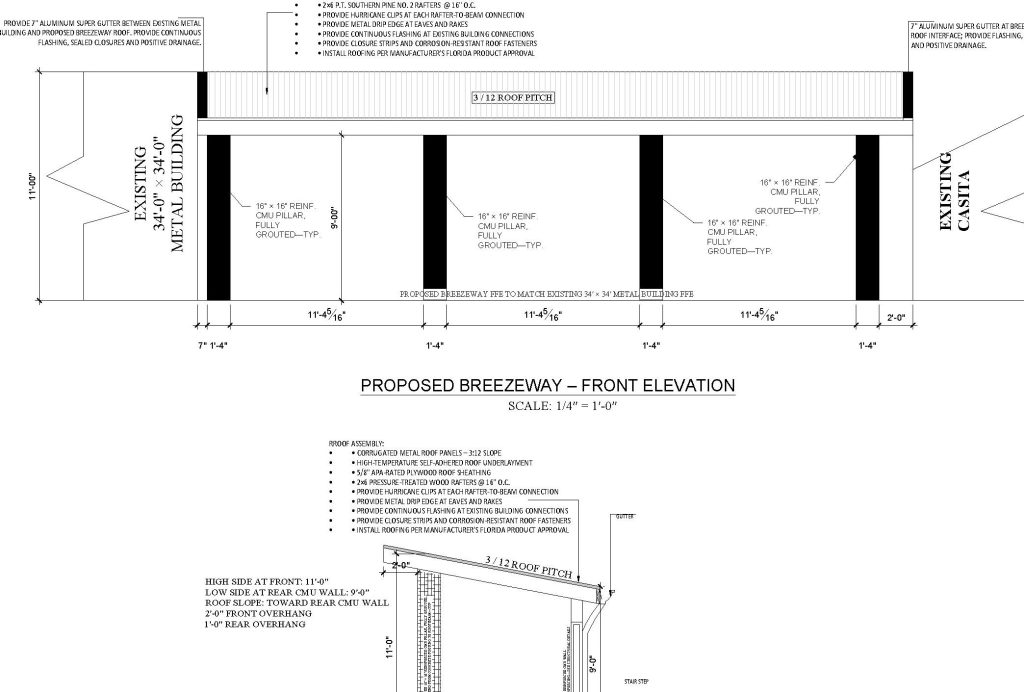

Elevations and sections coordinated the roof’s high/low sides, super-gutter interfaces, flashing and drainage direction.

Field verification

The finished-floor relationship with the existing metal building remained subject to field confirmation.

REAL PROJECT DOCUMENTATION

Sample Permit Drawing Sheets

Explore selected cropped views from the original project drawings. The project document is shown as images, not as an embedded downloadable PDF. These are reference excerpts, not construction drawings.

Previews are excerpted from the original project documentation. Portions of title blocks and professional identifiers are intentionally excluded. Contact us for project-specific permit drawings.

Documented drawing deliverables

• Project cover and general code notes
• Survey and site information
• Breezeway floor layout
• Roof plan, elevations and sections

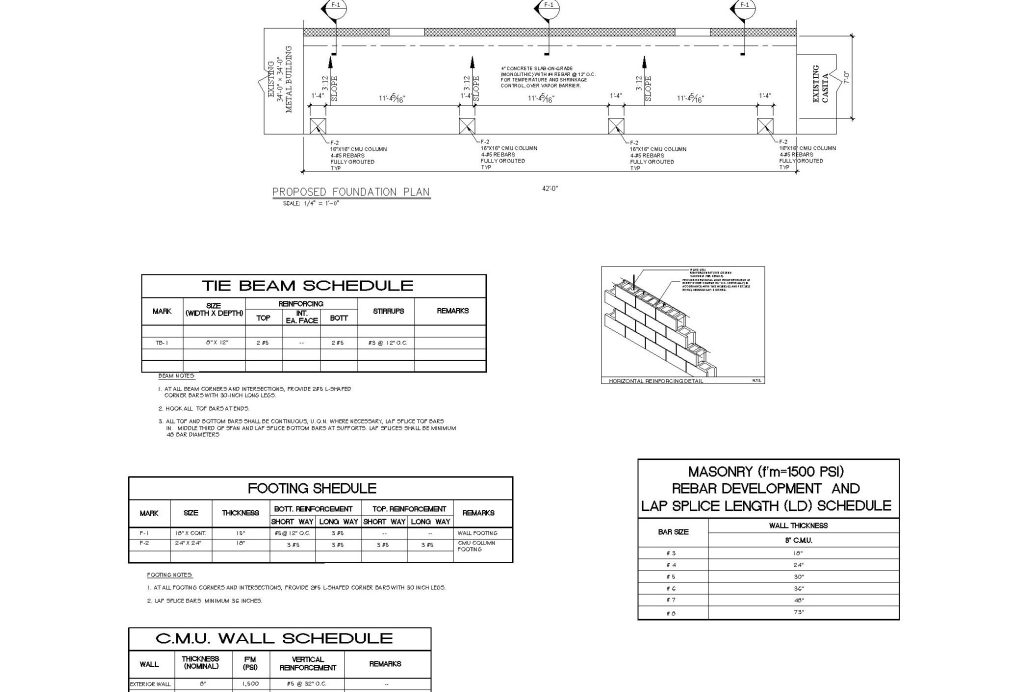

• Concrete slab, footing and CMU details
• Roof framing and structural connections
• Weatherproofing and roof interface details

Documented project outcome

Eight-page revised drawing set prepared for the covered breezeway addition. The available revision does not independently confirm final sealing, permit issuance or construction completion.

Why this matters for similar projects

Accurate property placement, documented framing, site conditions, construction connections and jurisdiction-specific requirements help owners, contractors and reviewers evaluate the proposed scope. No drawing package alone guarantees municipal approval, and concealed conditions may need inspection or verification before construction.
