Wall Location & Property Context
Proposed wall alignment, length, property lines, easements, nearby structures, setbacks, and site constraints.
WALL LOCATION • GRADING • DRAINAGE

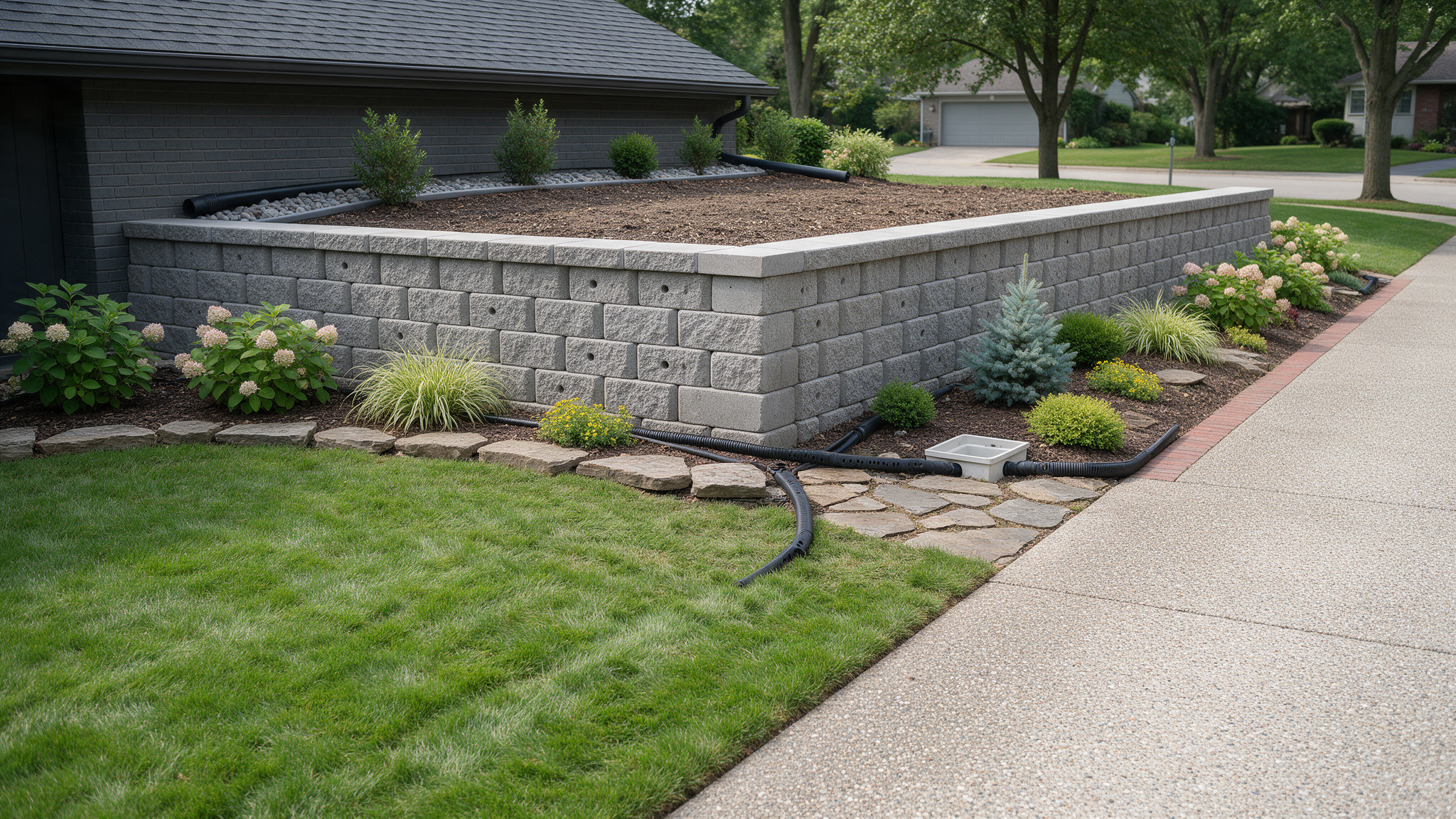

Retaining Wall Permit & Site Plans
Planning a new retaining wall, replacement wall, driveway wall, pool-area wall, or tiered retaining system? Get a coordinated site and permit drawing package showing wall location, property relationships, grades, drainage context, adjacent structures, and structural wall information where required.
Nationwide Support · Remote Workflow · Permit Revision Support
PERMIT DRAWING OVERVIEW
What This Project Type Requires
Retaining-wall permits often require both site and structural information. The site plan establishes where the wall is located, its length and relationship to property lines, buildings, slopes, driveways, pools, and drainage. Wall height, surcharge, soil conditions, groundwater, nearby structures, and tiering can determine whether engineered wall sections, footing design, reinforcement, or geotechnical information are required.
TYPICAL SCOPE
What May Be Included in the Permit Package
Existing / Proposed Grades
Top and bottom-of-wall elevations, slope relationships, grade transitions, and topographic information when available.
Drainage & Water Management
Drainage direction, aggregate zones, drains, outlets, swales, or site-drainage relationships where part of the scope.
Structural Wall Design
Wall sections, footing, reinforcement, block or concrete system, surcharge, guard conditions, and engineering where required.
COMMON PROJECTS
Projects We Support
- Residential yard retaining wall
- Driveway retaining wall
- Pool / patio grade wall
- Replacement retaining wall
- Commercial site wall
- Tiered retaining-wall system
WHAT WE NEED
Start With What You Already Have
- Property address
- Survey or topographic information
- Wall length
- Approximate retained height
- Wall material / system
- Photos of the slope
- Nearby structures or surcharge conditions
- Drainage information
- Existing wall details if replacement
- Permit comments
PERMIT REVIEW
Issues to Coordinate Before Finalizing the Design
Height & Engineering Triggers
Local jurisdictions use different height thresholds, and surcharge or adjacent structures can trigger engineering even for shorter walls.
Surcharge & Nearby Structures
Driveways, buildings, pools, fences, slopes, and other loads behind a wall can materially affect the structural design.
Drainage & Hydrostatic Pressure
Water management behind and around the wall is a critical design consideration and may affect both wall and site drainage.
Property Lines & Easements
Walls near boundaries, easements, utilities, slopes, or drainage features can require additional clearance or documentation.
LOCAL REQUIREMENTS MATTER
Permit Scope Varies by Property and Jurisdiction
Send the address, source documents, dimensions, and any review comments you already have. We will identify the appropriate site-plan, architectural, structural, engineering, or supporting permit scope.
HOW IT WORKS
From Project Information to Permit Drawings
Send the Address & Scope
Share the location, intended work, survey, plans, photos, manufacturer information, or permit comments.
We Review Requirements
We identify the project-specific site, structural, zoning, engineering, or supporting permit needs.
Prepare & Coordinate
The agreed drawing package is developed around the property, project information, and jurisdiction.
Review & Permit Support
Review the draft and return applicable permit comments for scope-related revisions.
REAL PROJECT CONTEXT
Retaining Wall Design Starts With Grade, Water and Surcharge
A wall is not reviewed only by height. Existing and proposed grades, drainage, soil and groundwater, nearby structures, driveways, pools, fences, slopes, property lines, easements, tiering, and surcharge can all change the permit and engineering requirements.
WHY SITE PLANS ONLINE USA
Permit-Focused Drawings, Coordinated Around the Actual Project
One team can coordinate the property, drawing package, supporting disciplines, and plan-review corrections within the agreed scope.
Site + Structural Coordination
Wall alignment, grades, drainage, footing, reinforcement, and structural design can be coordinated as one permit package.
Surcharge-Aware Planning
Driveways, buildings, pools, fences, slopes, and other loads behind the wall can be identified early so the structural scope is appropriate.
Drainage Coordination
Water behind the wall and site drainage around the wall can be addressed instead of treating the wall as an isolated object.
Replacement & Correction Support
Existing failed walls, replacement projects, and reviewer comments can be documented and revised when sufficient field information is available.
SCOPE & PRICING
What Affects the Final Drawing Package
We price the work around the actual permit scope rather than forcing every project into the same package. These are the most common items that change the drawing effort.
- Wall length
- Retained height
- Wall system / material
- Surcharge conditions
- Tiered walls
- Topographic information
- Drainage complexity
- Nearby structures
- Geotechnical information
- Structural calculations / PE review
NEED A QUICK SCOPE REVIEW?Send the property address, survey, photos, sketches, manufacturer information, or City comments you already have.
RELATED SERVICES
Connect the Rest of the Permit Package
PERMIT QUESTIONS
Frequently Asked Questions
1. When does a retaining wall need a permit?
Permit triggers vary by jurisdiction and can depend on wall height, surcharge, location, structural system, and adjacent conditions.
2. When does a retaining wall need engineering?
Taller walls, walls supporting surcharge, poor soil conditions, tiered walls, and walls near structures commonly require engineering review.
3. Do you need a topographic survey?
For projects involving significant grade change, drainage, elevations, or complex terrain, reliable topographic information may be required.
4. Can you include wall sections?
Yes. Structural wall sections, footing, reinforcement, and material details can be included when part of the agreed scope.
5. Can the plan show drainage behind the wall?
Yes. Wall-drainage and site-drainage information can be coordinated when it is part of the permit design.
6. Can you prepare plans for a replacement retaining wall?
Yes. Existing wall location, failure conditions, adjacent structures, and proposed replacement details can be documented.
7. Can you design a wall beside a driveway?
Yes, but vehicle surcharge, guard requirements, drainage, and foundation conditions may affect the design.
8. Can you prepare a wall around a pool or patio?
Yes. Pool, deck, patio, and grading relationships can be coordinated with the retaining-wall plan.
9. Do tiered walls require special review?
Often. Spacing between walls, combined retained height, slopes, and surcharge can affect how tiered walls are analyzed.
10. Can a retaining wall be placed on the property line?
That depends on local rules, boundary information, easements, drainage, and access for construction or maintenance.
11. Do you provide grading plans too?
Yes. Grading and drainage plans can be coordinated when the project requires broader site design.
12. Can you revise a rejected retaining-wall plan?
Yes. Send the reviewer comments and current drawings so the required revisions can be evaluated.
13. Do you provide structural calculations?
Yes, when calculations are included in the agreed structural scope.
14. Can PE review and sealing be coordinated?
Yes, where required, subject to the licensed professional’s final review and acceptance.
15. Do you work nationwide?
Yes. We support retaining-wall site and permit plans across the United States.
READY TO START?
Send the Property Address and Project Scope
Upload or send the survey, photos, sketches, manufacturer information, or permit comments you already have. We will review the material and help identify the next step.
