Installing a fence may seem like a simple home improvement project, but many cities and counties require approval before construction begins. A fence site plan for permit helps building departments understand exactly where the proposed fence will be installed and whether it follows local zoning requirements. Understanding site plan requirements for building permits before submission helps ensure the drawing includes all necessary details.
A permit reviewer needs more than a basic sketch of where you want the fence. The drawing must show important property information, including boundaries, existing structures, fence placement, required setbacks, and access points such as gates.
A properly prepared fence site plan helps prevent common approval problems by giving officials a clear view of how the new fence fits within the property. It also helps homeowners and contractors avoid mistakes that could require expensive changes after installation.
What Is a Fence Site Plan for Permit?

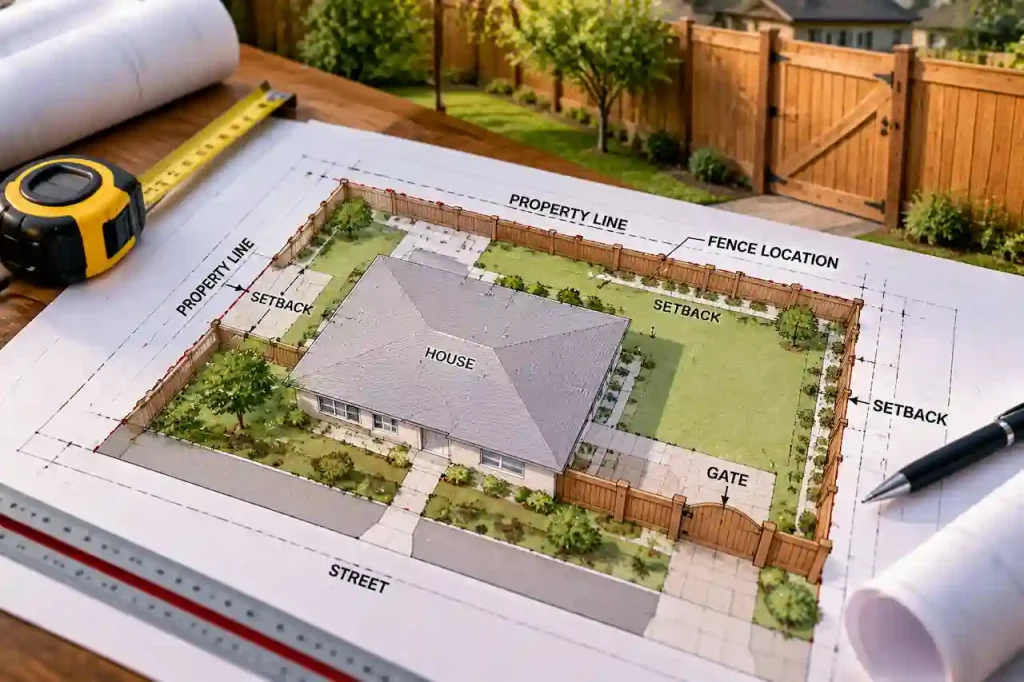

A fence site plan is a scaled drawing that shows the location of a proposed fence in relation to the entire property. It provides a top-down view of the lot and explains where the fence will be placed compared with property lines, buildings, streets, and other site features.
Unlike a fence design drawing that focuses on appearance, materials, or construction details, a permit site plan focuses on location and compliance. Learning what a site plan is helps homeowners understand why accurate drawings are required during the approval process.
The main purpose of the drawing is to help the permitting department confirm that the proposed fence follows local regulations. Reviewers use the plan to verify setbacks, property boundaries, fence height requirements, and possible conflicts with easements or public areas.
Many jurisdictions require fence permit plans to show property lines, existing structures, proposed fence locations, dimensions, gates, and other site details before approval.
Why Do You Need a Site Plan for a Fence Permit?
A fence changes the layout and accessibility of a property, which is why local authorities often require documentation before construction.
The site plan allows officials to confirm that the fence is being installed within the correct property boundaries and does not violate zoning regulations. This is especially important for fences near streets, sidewalks, neighboring properties, or shared boundaries.
Without an accurate drawing, permit reviewers may not be able to verify whether the proposed fence meets required distances or height limitations.
A complete fence site plan also protects homeowners from potential disputes by clearly documenting the intended fence location before installation.
What Must a Fence Site Plan Show for Permit Approval?
A fence permit drawing must provide enough information for a reviewer to understand the complete relationship between the fence and the property. While requirements vary by city and county, most permit offices look for several important elements.
Property Lines and Lot Boundaries
Property lines are one of the most important parts of a fence site plan because they determine where the fence can legally be placed. The drawing should clearly identify the property boundaries and show the proposed fence location in relation to those boundaries.
This helps confirm that the fence is not accidentally placed on neighboring property, public right-of-way areas, or restricted zones.
Accurate property line information is especially important when installing boundary fences because even a small location error can create conflicts with adjacent owners.
Fence Location and Layout
The proposed fence line must be clearly shown on the site plan. The drawing should identify where the fence will be installed around the property and how it connects with existing features.
A permit reviewer should be able to understand:
- Where the fence begins and ends
- Which areas of the property will be enclosed
- How the fence relates to existing structures
The fence layout should also distinguish between existing fences and new proposed fencing when applicable.

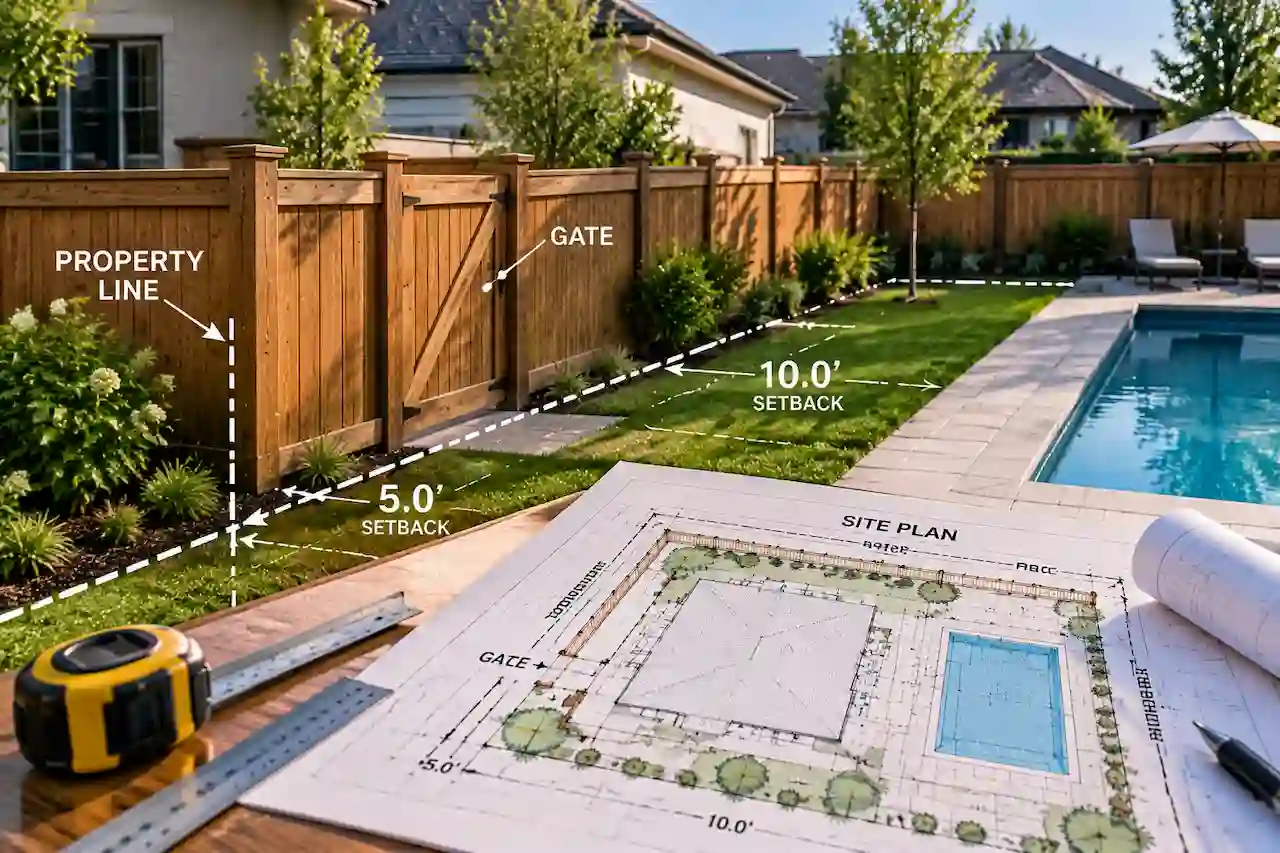

Fence Setbacks From Property Lines
Setbacks determine how far the fence must be placed from specific property features.
Depending on local regulations, fences may need to maintain certain distances from:
- Front property lines
- Side and rear boundaries
- Streets and sidewalks
- Easements
- Corner visibility areas
Setback requirements are one of the most common reasons fence permits require corrections. Understanding setback requirements for permits helps property owners prepare drawings that meet local regulations. A drawing that shows the fence location without labeled measurements may not provide enough information for approval.
Gate Locations and Access Points
Gates are an important part of a fence permit plan because they affect access, safety, and property use. The site plan should show where gates will be installed and identify their locations along the proposed fence line. For driveway gates or larger access points, additional information may be needed depending on local requirements.
Showing gate locations clearly helps reviewers understand how people and vehicles will enter and exit the enclosed area.
Existing Structures and Property Features
A complete fence site plan should show existing features that may affect fence placement.
These may include:
- House footprint
- Garage
- Driveway
- Existing fences
- Decks or patios
- Pools
- Utility areas
Existing structures help reviewers evaluate spacing requirements and ensure the proposed fence does not interfere with important property features.
Fence Height and Material Information
Many permitting departments require details about the proposed fence itself.
The plan or supporting documents may need to identify:
- Fence height
- Material type
- Fence style
Different areas may have different height restrictions depending on whether the fence is located in the front yard, side yard, or rear yard. Including this information early helps reduce permit questions and review delays.
Easements, Utilities, and Right-of-Way Areas
Easements and public access areas can affect where a fence can be installed. Property owners should understand what an easement is before planning construction near restricted areas. Utility easements, drainage areas, and right-of-way zones may restrict fence placement because these areas need to remain accessible.
A professional fence site plan should identify these conditions whenever they apply to the property.
Common Reasons Fence Permit Site Plans Get Rejected
Many fence permit delays happen because the drawing does not provide enough information for the reviewer. Similar issues are discussed in our guide about why site plans get rejected.
Common issues include:
- Incorrect or missing property lines
- Fence location without setback measurements
- Missing existing structures
- No gate locations shown
- Incorrect scale or incomplete drawing information
A detailed permit-ready plan reduces these problems by providing the information reviewers need during the first submission.
What Information Is Needed to Create a Fence Site Plan?
Before preparing a fence permit drawing, homeowners or contractors should gather accurate project information.
The required information may include:
- Property address
- Available survey or property documents
- Fence location and dimensions
- Fence height and material
- Gate locations
- Existing structures on the property
Providing complete information helps create a more accurate plan and reduces revision requests. Before preparing the drawing, homeowners should confirm whether additional property information is required. Learn more about whether you need a survey for a site plan before starting your project.
Why Choose Us for Fence Site Plans?
Creating a fence site plan requires more than drawing a line around a property. The plan must clearly communicate property conditions and meet permit review expectations.
Our team prepares detailed fence site plans that show important information such as property boundaries, fence placement, setbacks, gates, and existing site features. We also provide professional permit site plans for different residential and commercial projects.
We help homeowners and contractors prepare organized permit documentation designed to make the approval process smoother.
How a Professional Fence Site Plan Helps Avoid Permit Delays
A professionally prepared fence site plan saves time by ensuring important details are included before submission.
Instead of dealing with corrections caused by missing measurements or unclear drawings, homeowners can submit a document that clearly explains the proposed fence installation.
Accurate plans also help contractors begin projects with better confidence because the approved layout matches the intended installation.
Need a Fence Site Plan for Your Permit Application?
A complete fence site plan is an important part of the permit process. The drawing must clearly show property lines, setbacks, fence placement, gates, and existing site conditions.
Whether you are installing a new fence, replacing an existing one, or modifying your property layout, having an accurate permit-ready plan can help avoid unnecessary delays.
Get started with a professional fence site plan for permit approval and prepare your project documentation with confidence.
Frequently Asked Questions
Do I need a site plan for a fence permit?
Most cities and counties require a site plan for fence permits. The drawing helps verify property boundaries, fence placement, setbacks, and compliance with local zoning rules.
What does a fence site plan include?
A fence site plan usually includes property lines, existing structures, proposed fence location, setbacks, gates, dimensions, and other information required by the permitting authority.
How accurate does a fence permit drawing need to be?
The drawing should accurately represent the property layout, fence location, and required measurements. Incorrect information can delay approval or require revisions.
Can I draw my own fence site plan?
Some jurisdictions allow homeowners to prepare their own drawings, but the plan must meet local requirements for scale, dimensions, and information shown.
Do fence permits require property surveys?
Requirements vary by location. Some projects may use existing property documents, while others may require additional boundary information depending on local rules.
What setbacks are required for a fence?
Fence setbacks depend on local zoning regulations. Requirements may vary based on property lines, streets, sidewalks, corner lots, and easements.
Should gates be shown on a fence site plan?
Yes. Gate locations are commonly shown because they affect access, safety, and property layout.
Why do fence permits get rejected?
Fence permits are often delayed because of missing property lines, incorrect setbacks, incomplete drawings, or missing information about structures and gates.
Does a fence site plan need to show existing fences?
Yes, showing existing fences helps reviewers understand the current property layout and how the proposed fence changes the site.
How long does fence permit approval take?
Approval times depend on the local permitting department and project complexity. Complete documentation usually helps prevent unnecessary delays.
What to Do Before Ordering a Fence Site Plan
If You Have a Property Survey
Send your property address and attach your existing survey. We can review the available information and confirm what is needed for your fence permit drawing within 2 hours.
→ Send Your Address and Survey — Get Requirement Confirmation
If You Do Not Have a Survey
Share your address and fence project details. We can check your county requirements and help determine whether additional property information is needed before preparing your fence site plan.
→ Send Your Address and Project Details — Check Fence Permit Requirements
If You Are Unsure About Permit Requirements
Use these tools to understand your local fence permit requirements:
→ Use the Permit Requirements Checker
→ Calculate Your Site Plan Cost
Fence permit requirements vary by city and county. Some locations may require detailed boundary information, while others may accept existing property records. Checking requirements before creating your drawing helps avoid delays, corrections, and resubmissions.
Get Your Permit Drawing Scope Reviewed
Send us the property address and project details. We’ll help identify the likely drawing scope and next step.
