Adding a room, expanding a kitchen, converting a garage into living space, or any significant home addition that changes the exterior footprint of your house almost certainly requires a building permit. And that permit requires a site plan.
I’m Engineer Wasim of Site Plans Online USA.

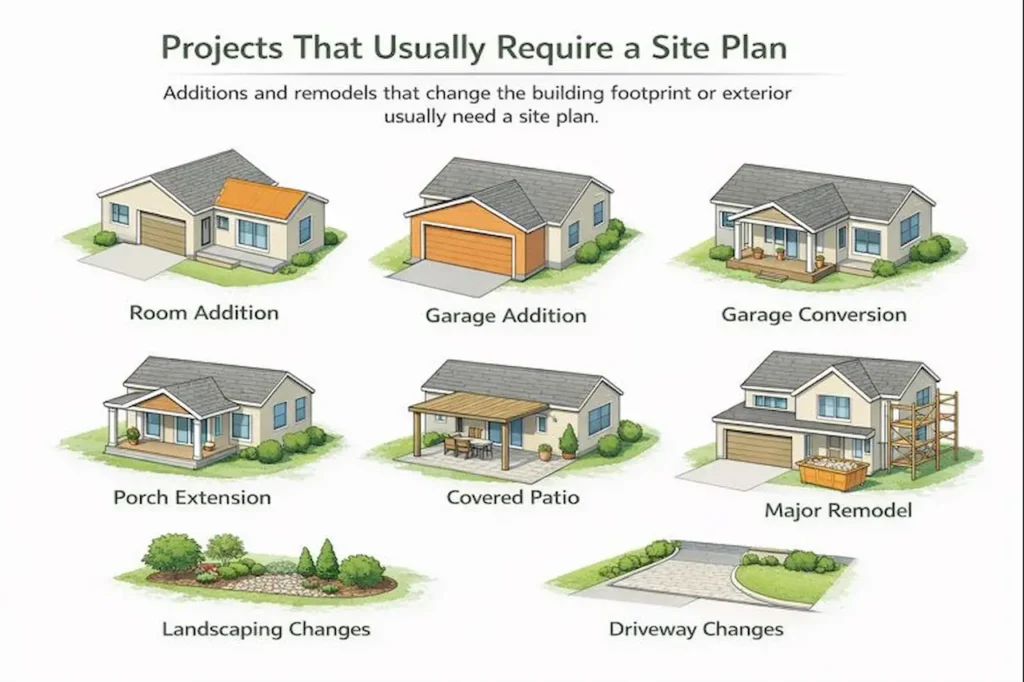

When Does a Home Addition Need a Site Plan?
Any addition that:
- Increases the exterior footprint of the house
- Adds square footage (even vertically in some jurisdictions)
- Adds a new attached structure
…commonly requires a permit in US jurisdictions; confirm locally. And permits for additions require site plans.
Interior remodels that don’t change the exterior footprint, painting, flooring, and kitchen cabinet replacement typically don’t require a site plan. But if you’re adding a room, enclosing a porch, or expanding outward, you need one.
What a Home Addition Site Plan Must Include
Beyond the universal site plan elements, home addition permits typically require:
- Existing house footprint with dimensions — full house shown, not just the addition area
- Addition footprint with dimensions — clearly labeled “PROPOSED ADDITION” and dimensioned
- Connection point — where the addition attaches to the existing house
- All setbacks — addition must meet the same setbacks as the principal structure (typically 25 ft front, 20 ft rear, 7.5 ft side for standard R-1 zones — varies by jurisdiction)
- Impervious surface calculation — addition footprint adds to lot coverage; must stay within zoning maximum
- Any utility or easement impacts — confirm addition doesn’t encroach on easements
PE Stamp Threshold for Additions
Most jurisdictions don’t require a PE stamp for small, straightforward residential additions. However, many have a size threshold above which PE review is required:
- Many counties: PE stamp required for additions over 500 sq ft
- Some jurisdictions: PE stamp required for any structural modification (load-bearing wall removal, foundation changes)
- Commercial additions: PE stamp required
If your addition involves any structural engineering — removing load-bearing walls, adding beams, changing foundation — a PE review is required regardless of size.
See our PE Stamp services.
Setbacks for Additions
A home addition must meet the same setback requirements as the principal structure. These vary by zoning district. Typical R-1 residential standards:
- Front: 25 ft minimum
- Rear: 20 ft minimum
- Side: 7.5 ft minimum
If the addition would bring the house closer to a property line than the setback minimum, you’d need a variance before the permit can be issued.
